ST50/ST85 Series

ST50

ST50 Stair Nosing

Specifications:

Alloy: 6060 T6

Installation:

  • 4 Screws per metre (minimum)
  • Construction Type Adhesive where required

Availability:

4000mm Lengths or Cut to Size, Pre-Drilled & Countersunk

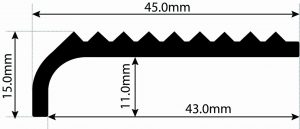

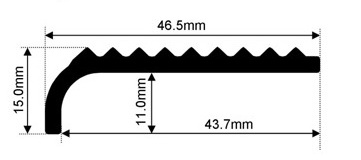

ST50 Specification

Click on any image for full size...

BRASS

ST50 Brass

Click on any image for full size...

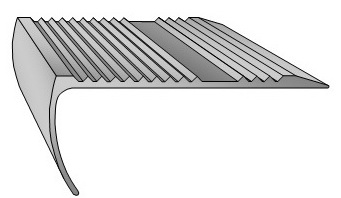

STEEL ST85

Steel ST85

Specifications:

Alloy: 6060 T6
Insert: Optional 12mm Self Adhesive Carborundum Tape
Anodizing: Min. 15u.m. Matt Natural

Installation:

  • 4 Screws per metre (minimum)
  • Construction Type Adhesive where required

Availability:

4500mm Lengths or Cut to Size, Pre-Drilled & Countersunk

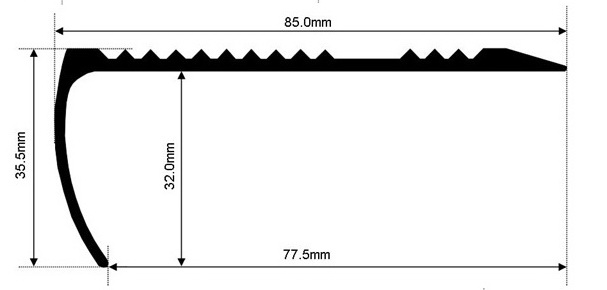

Dimension ST85

Click on any image for full size...
